Features
• Improved internal circuitry and optimized power supply
• New charge circuitry with integrated reverse-polarity protection
• Optimized charge IC now allows up to 2.2A internal USB-C charge current
• Rear-mounted audio jack provided headphone output
• V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)

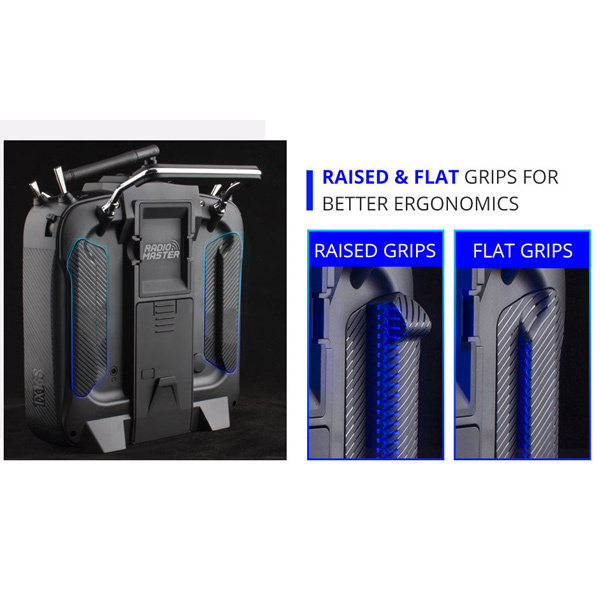

• Optional high/low rear grips are included for improved ergonomics
• Improved S1/S2 knobs with clear centre-detents
• Improved LS/RS Sliders with smoother feel and better centre-detents
• Redesigned battery cover for improved battery access
• Retooled body shell with improved fit and finish
• Trainer socket changed to standard TRS 3.5mm socket
• Rear DIY Socket added for personalised mods
• Improved internal plastics for better longevity

Specification
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
• Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
• SD card: 256MB by default, 8GB maximum
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Remote control distance:> 2km @ 22dbm
• Radio firmware: EdgeTX
• Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor

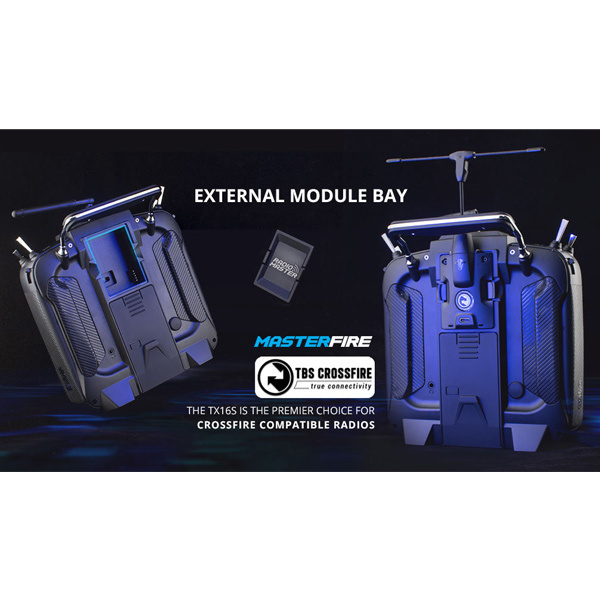

• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade

SKU RDM-C0157-0020
Barcode # HP157-TX16SMKII-ELRS-M2
Brand RadioMaster
