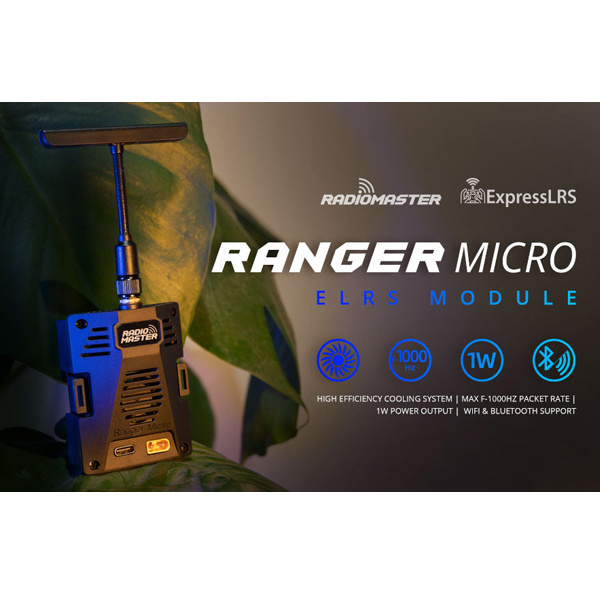

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

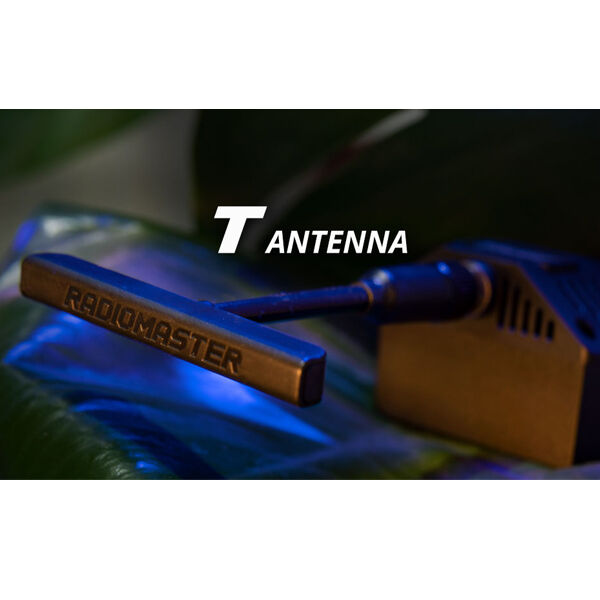

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

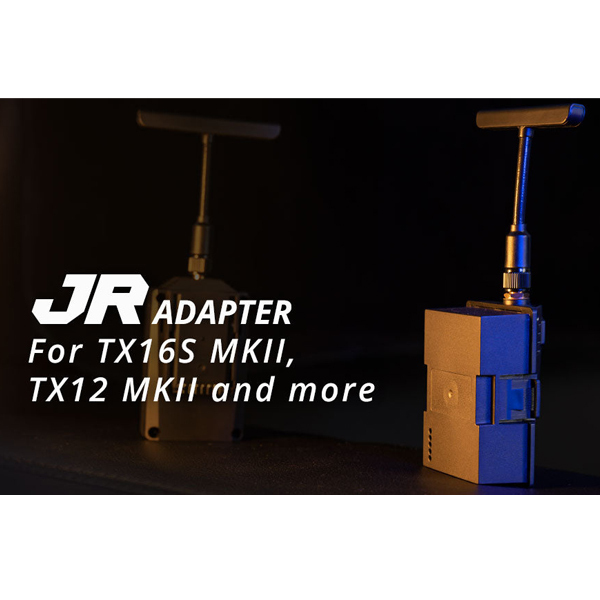

  • Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Features

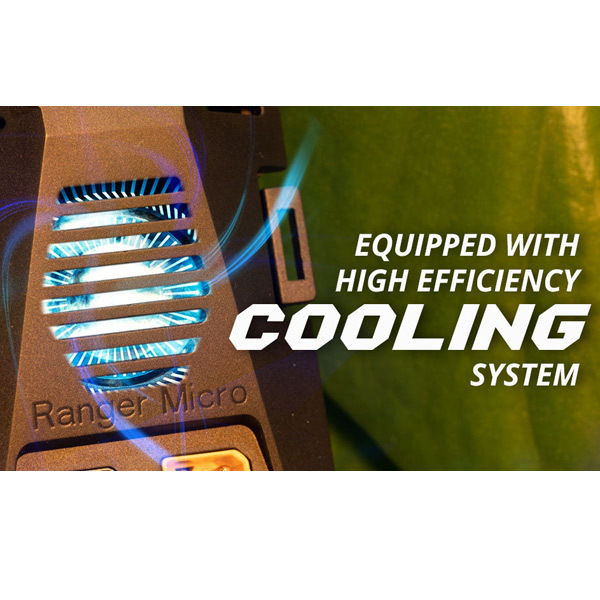

• High-efficiency cooling system
• Up to 1Watt Power output
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• T-antenna included
• With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification

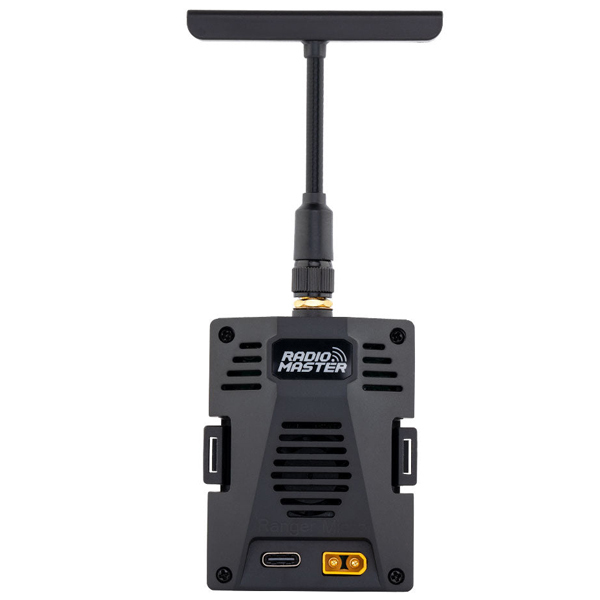

• Item: Ranger Micro Module
• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Wifi Support: Yes
• Bluetooth support: Yes

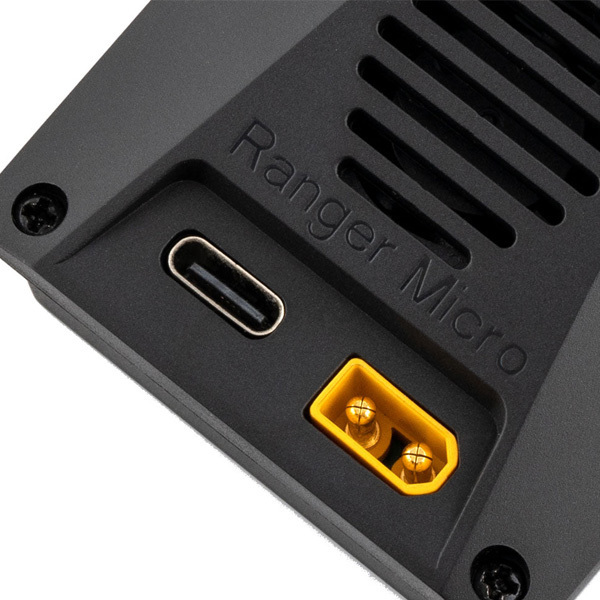

• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 50g (with antenna) / 40.5g (without antenna)
• Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

SKU RDM-HP0157-0034
Barcode # HP0157-0034
Brand RadioMaster
